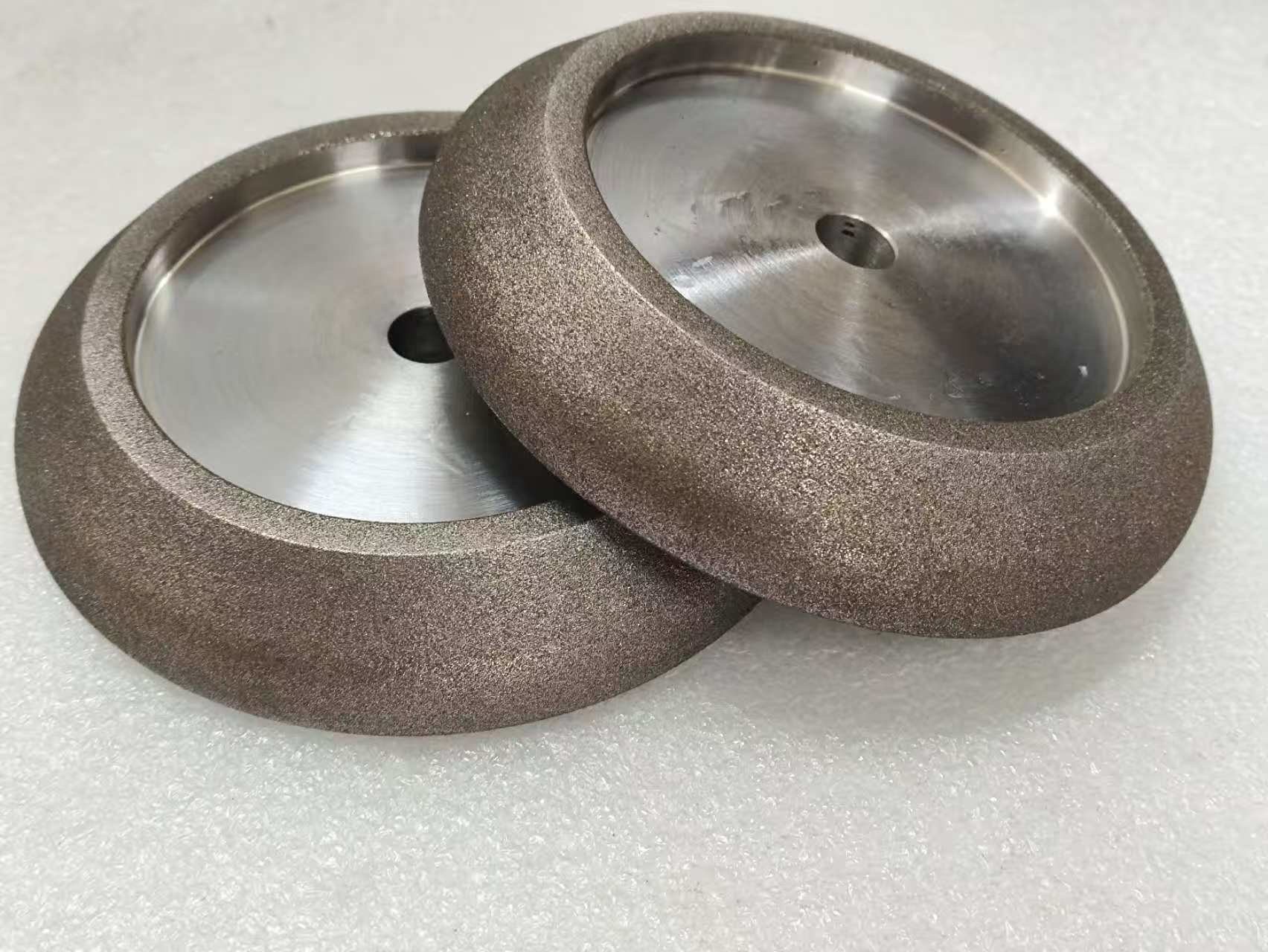

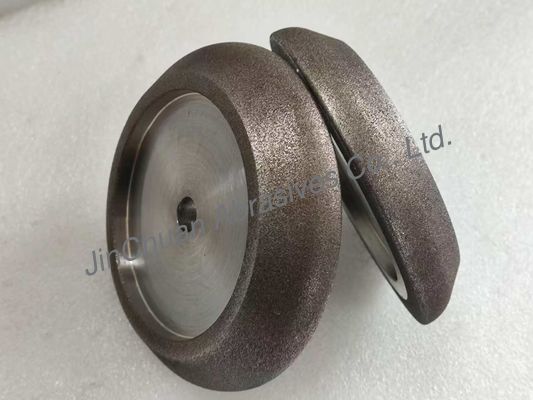

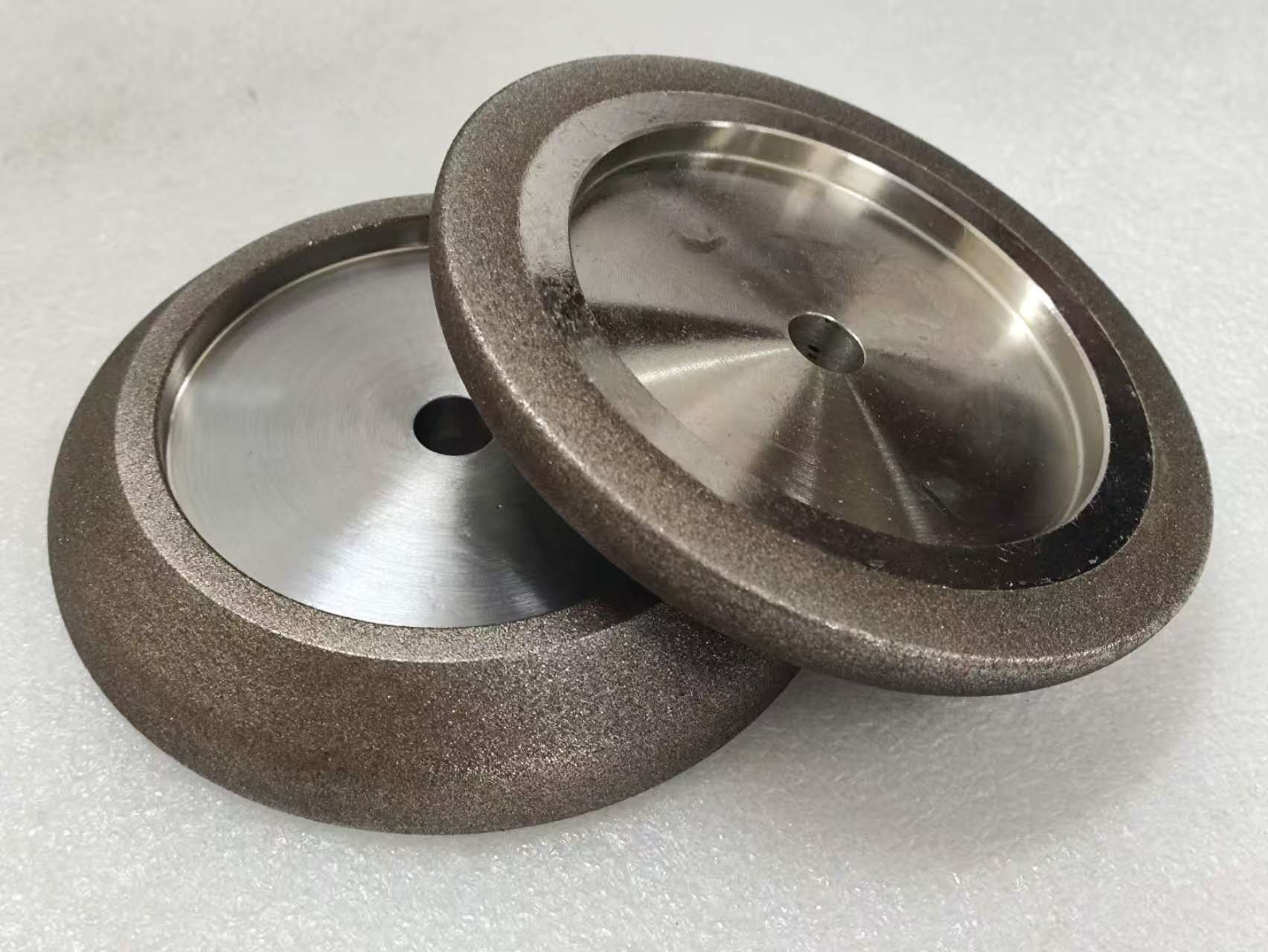

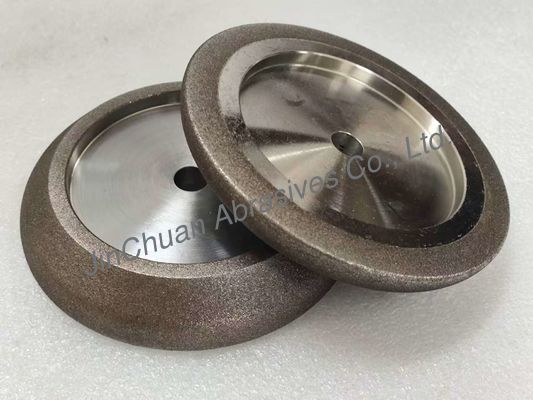

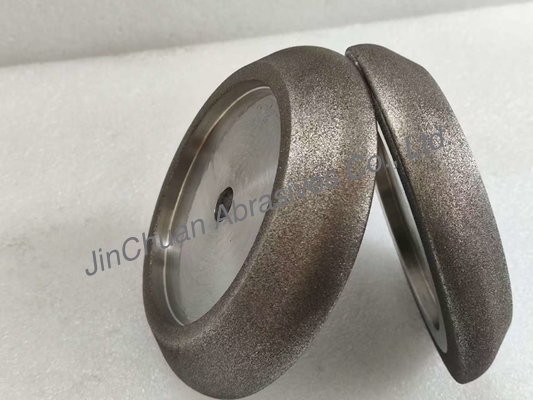

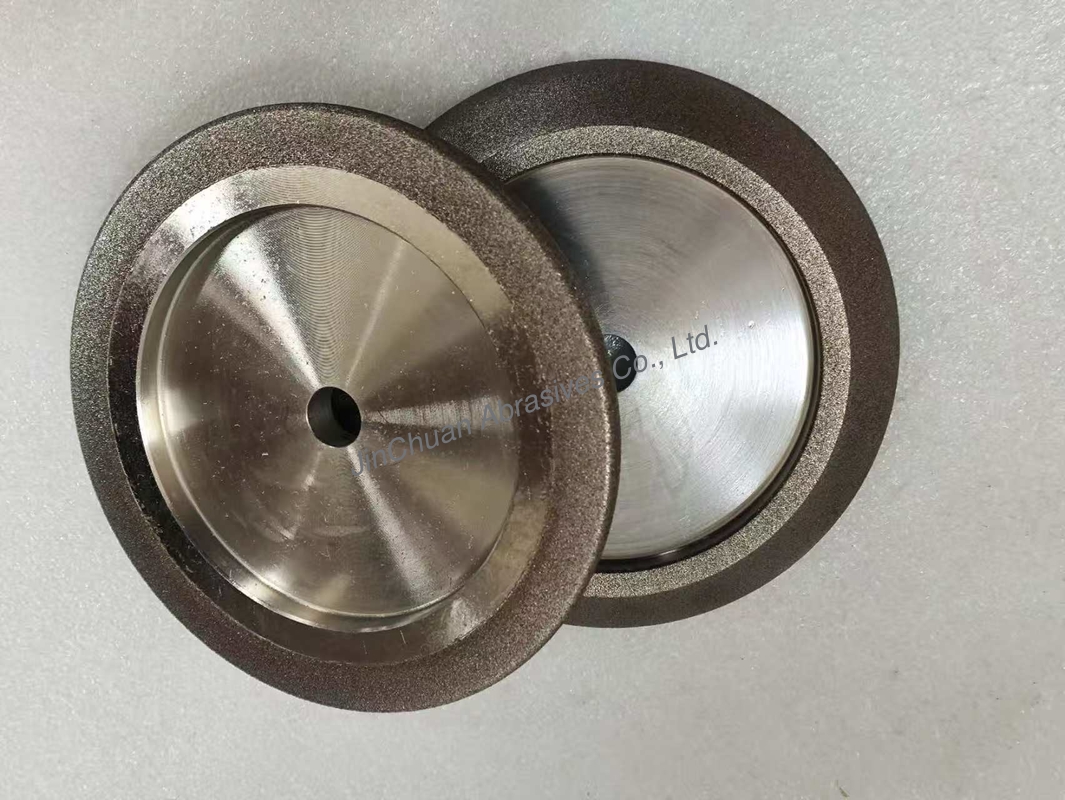

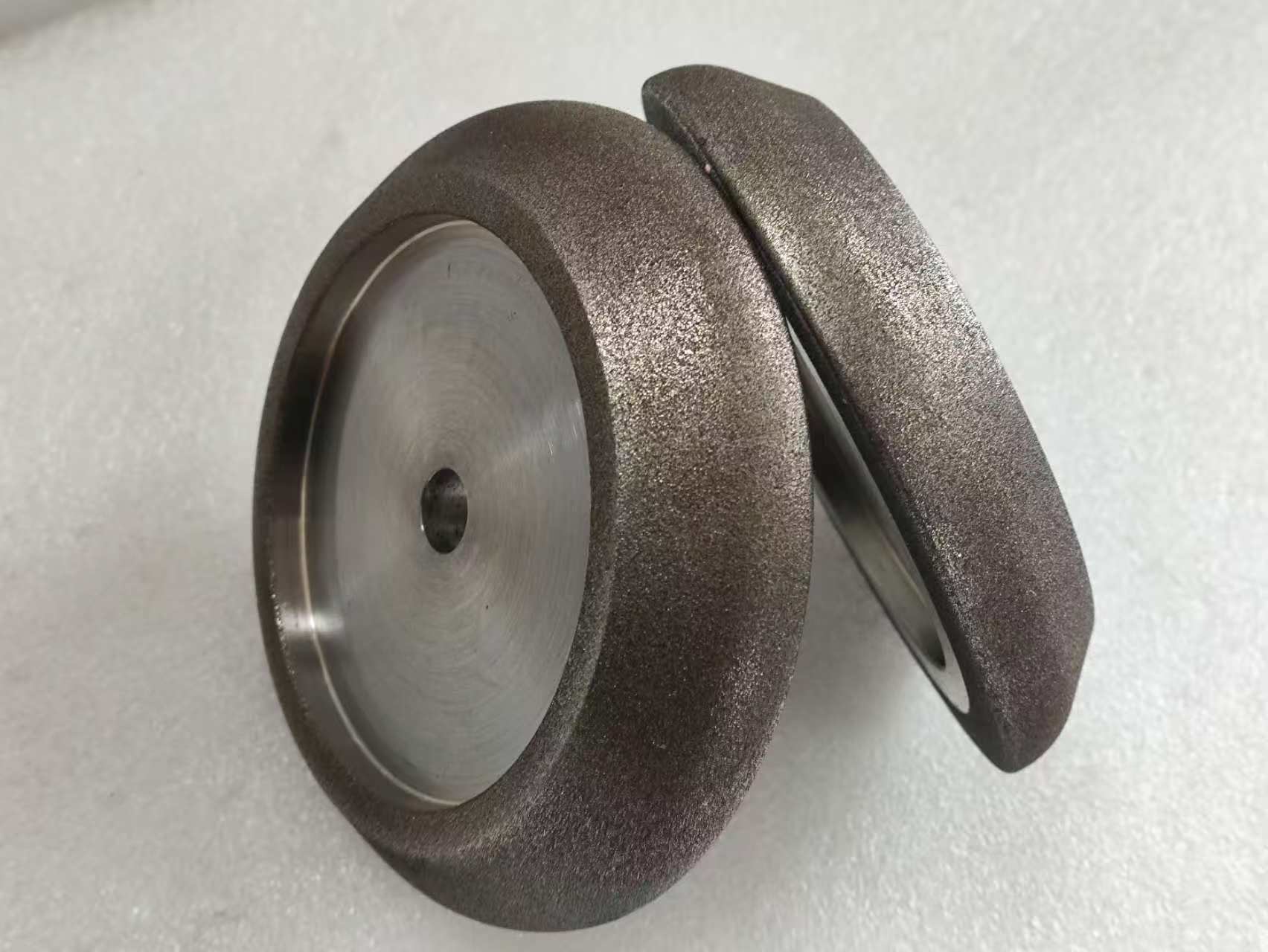

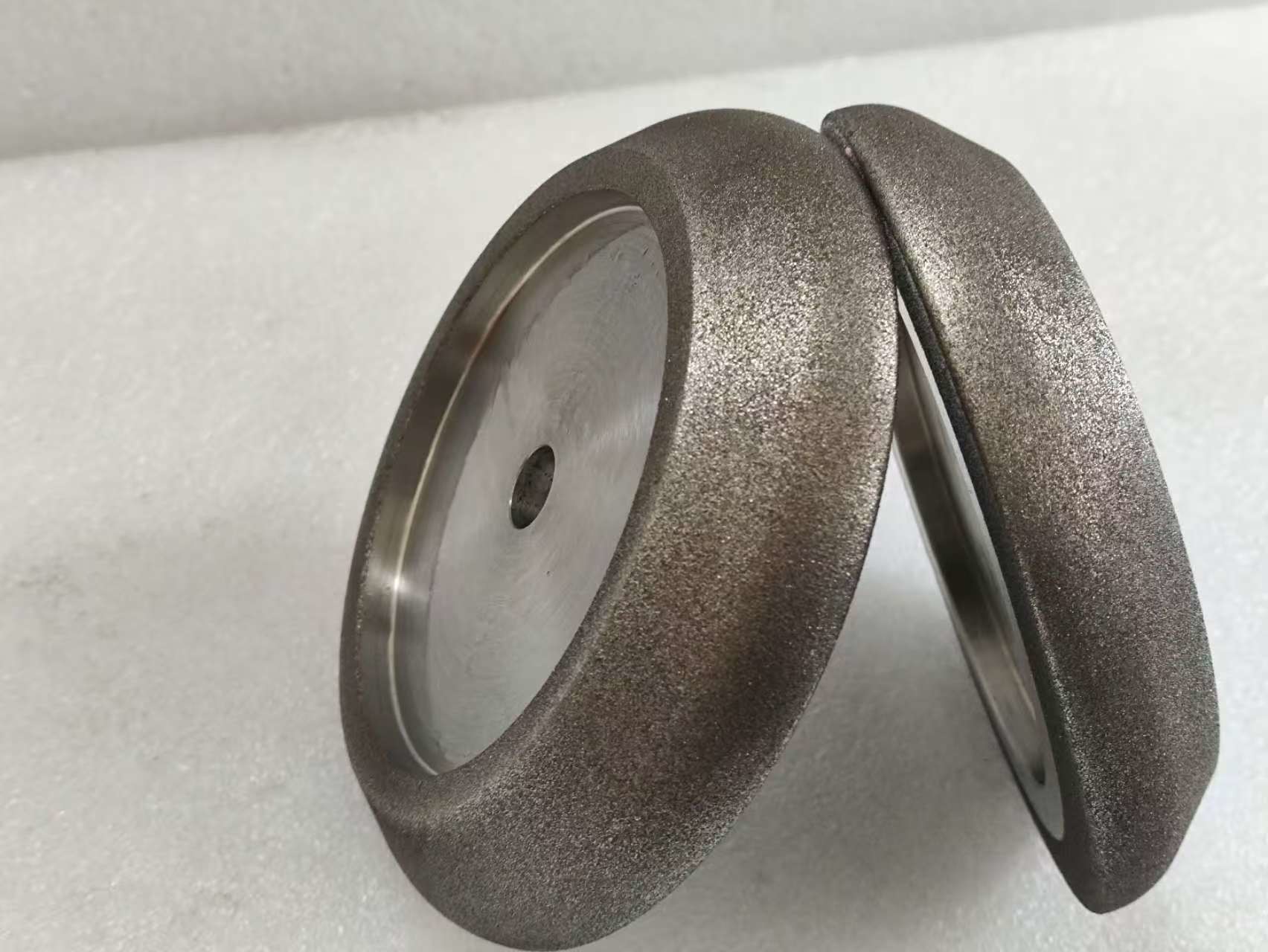

5 Inch WM7/34 Woodmizer BandSaw Sharpening Grinding Wheel

5 Inch WM7/34 Woodmizer BandSaw Sharpening Grinding Wheel

  • برجسته کردن

    5 inch Woodmizer bandsaw grinding wheel,WM7/34 bandsaw sharpening wheel,electroplated CBN grinding wheel

    ,

    WM7/34 bandsaw sharpening wheel

    ,

    electroplated CBN grinding wheel

  • ساینده های چرخ
    نیترید بور مکعبی
  • عامل اتصال
    فلز، رزین، سرامیک، رزین یا سرامیک، A
  • وثیقه
    باند آبکاری شده
  • بسته بندی
    جعبه و کارتن
  • استفاده
    سنگ زنی
  • سود
    همچنین می تواند هزینه های حمل و نقل را کاهش دهد
  • نمونه
    در دسترس
  • رنگ Cbn
    قهوه ای سیاه
  • بدنه پایه
    فولاد
  • قطر سوراخ
    12.7 میلی متر
  • قطر
    127 میلی متر
  • محل منبع
    هنان ، چین
  • نام تجاری
    JC
  • گواهی
    ISO
  • شماره مدل
    سفارشی
  • مقدار حداقل تعداد سفارش
    5
  • قیمت
    قابل مذاکره
  • جزئیات بسته بندی
    یکی تو جعبه
  • زمان تحویل
    5-8 روز کاری
  • شرایط پرداخت
    T/T، L/C، D/A، Western Union
  • قابلیت ارائه
    10000/ماه

5 Inch WM7/34 Woodmizer BandSaw Sharpening Grinding Wheel

Product description



CBN (Cubic Boron Nitride) Band Saw Grinding Wheel is a high performance abrasive tool used for sharpening band saws such as metal cutting band saws, woodworking band saws, etc.Cubic boron nitride (CBN) is a synthetic superhard material with performance between diamond and common abrasives such as corundum and silicon carbide. It performs particularly well in high temperature and iron family material processing.​



Specification

Name 5 inch bandsaw sharpening grinding wheel
outer diameter 127mm
tooth spacing 22.23mm
bore diameter 12.27mm
turbo 7/34
grit size  B151
suitable for

woodmizer band saw bade





Mostly used CBN wheel ar for band saws of following producers:

WM profiles, Mi.l, Simonds, Dakin-Flathers Ripper37, Lenox, Lenox Woodmaster C, Munkfors, Fenes, Armoth, Hakansson, Ro-Ma, Wintersteiger and others

If your bandsaw is not these brands, contact us , we can custom  wheel for you.



Product advantages



1,Excellent high temperature performance
2,Strong antioxidant capacity
3,Sharp, Fast grinding
4,Long life, Much longer life than traditional abrasive wheels
5,No dust coming out when sharpening and grinding



Packing and shipping



We will use carton packing, if you need carton or other packing, we can also support your request.We support express delivery, air transportation and sea transportation.The express delivery includes DHL, FedEx, TNT, UPS, EMS, etc. Usually, we will arrange the delivery within 7 working days after confirming the contract.



Company introduction



Zhengzhou Jinchuan abrasive abrasive co., LTD. Is committed to providing the most advanced diamond and cubic boron nitride products.We have experienced engineers and technical experts, professional industrial knowledge and technical services to help customers find the best solutions.



If you need to customize, please provide the following information:



1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;

2. Abrasive, abrasive sand particle and concentration;

3. Wheel application;

4. Pictures and drawings of wheels;

We can then design and quote for you.
